Tandem Trailer Kit 2500kg Disc Braked - Unihub

Item code: TK2500TBU

$4,186.53 ea excl. GST

When planning a trailer build it is important to have reliable trailer components you can trust. This Kit has all you need to fit out a top class 2500kg Tandem Trailer with front and rear tailgate and single Braked Axle. "We do the business" so you can get on with building your dream trailer.

From the zinc plated over-ride coupling with super low profile Master Cylinder, Folding Back Frame Handle and unique quick release Flipper Spring, which will ensure you never have burnt out brakes again.

NZ Trailer Brake Regulations requires trailers up to 2500kg to be fitted with service brakes on at least 1 axle, twin crossed safety chains, or an electric Breakaway System. This kit includes one 225mm Rotor Cast Iron Strike! Disc braked axle, one non-braked axle and twin rated safety chains.

This trailer kit is set up with Trailparts™ latest hub innovation, Unihub. The Unihub's feature unitised bearings with a sealed for life design that doesn't require any maintenance. These bearings bear radial/axial loads from all directions reducing twisting. Tow in confidence with an improved, shorter, thicker stub design and increase peak load safety margins.

This kit is best suited for general purpose 2500kg trailers.

Pre-Assembled Axles Included - 36 month warranty

To guarantee the quality of your Unihubs, your axles will be professionally assembled to your custom length requirements and delivered with your complete trailer kit. Not only will this save time, custom axles with Unihub's come with a HUGE 36 month warranty!

One of our service team members will get in touch regarding your axle specifications.

Part Code Description Quantity
C2750F Hydraulic over-ride 2500kg, 3/4", folding handle 1
E43007 pin flat PLUG, Quickfit, B41

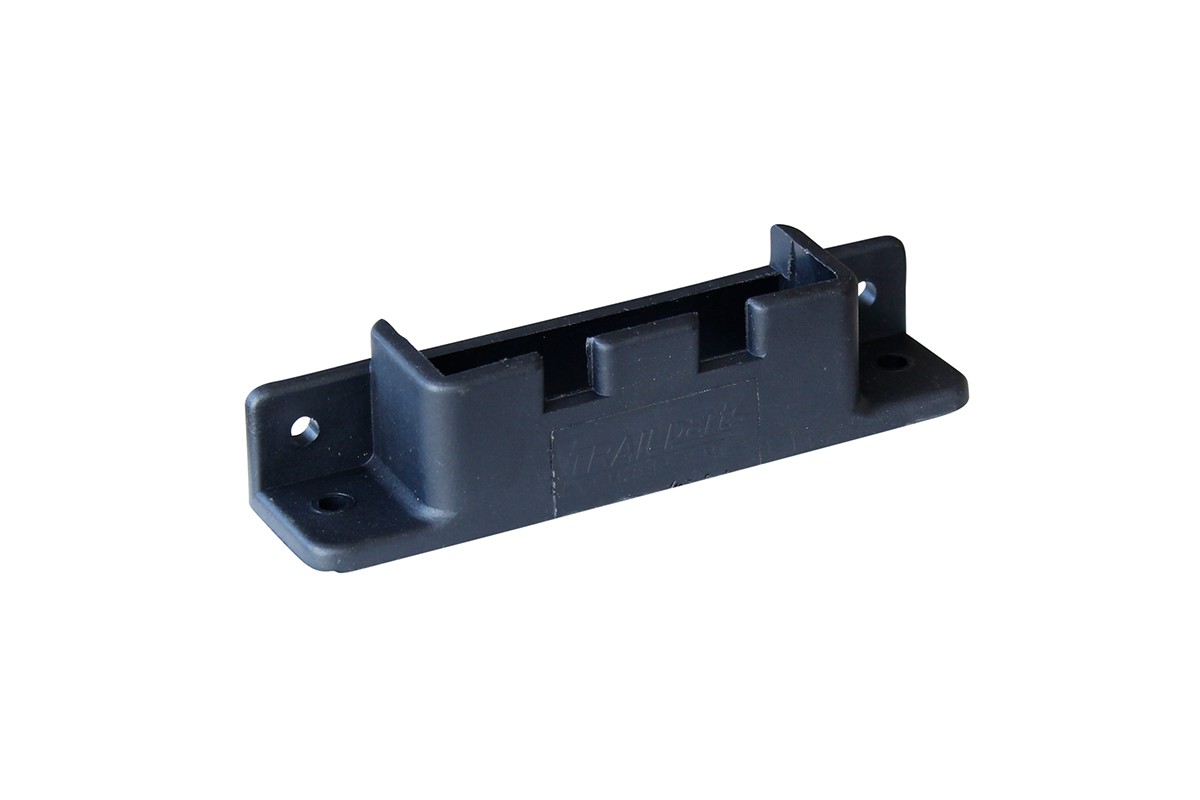

E43307 pin flat plug HOLDER, plastic1
Z6771SSSafety Chain Kit - 9 link chain2
JT8BGSolid Galv Jockey Wheel, 250x4 rim/tyre, 220kg bolt on
1
BBK4025Hydraulic Brake Hose 4000/2500mm including fittings
1/kit
G2145Mudguards - 235 x 1500mm, Folded, Bare Steel, 1.6mm
1/pr
S3345Spring set complete - eye/slipper rocker, 5 Leaf, 2500kg1

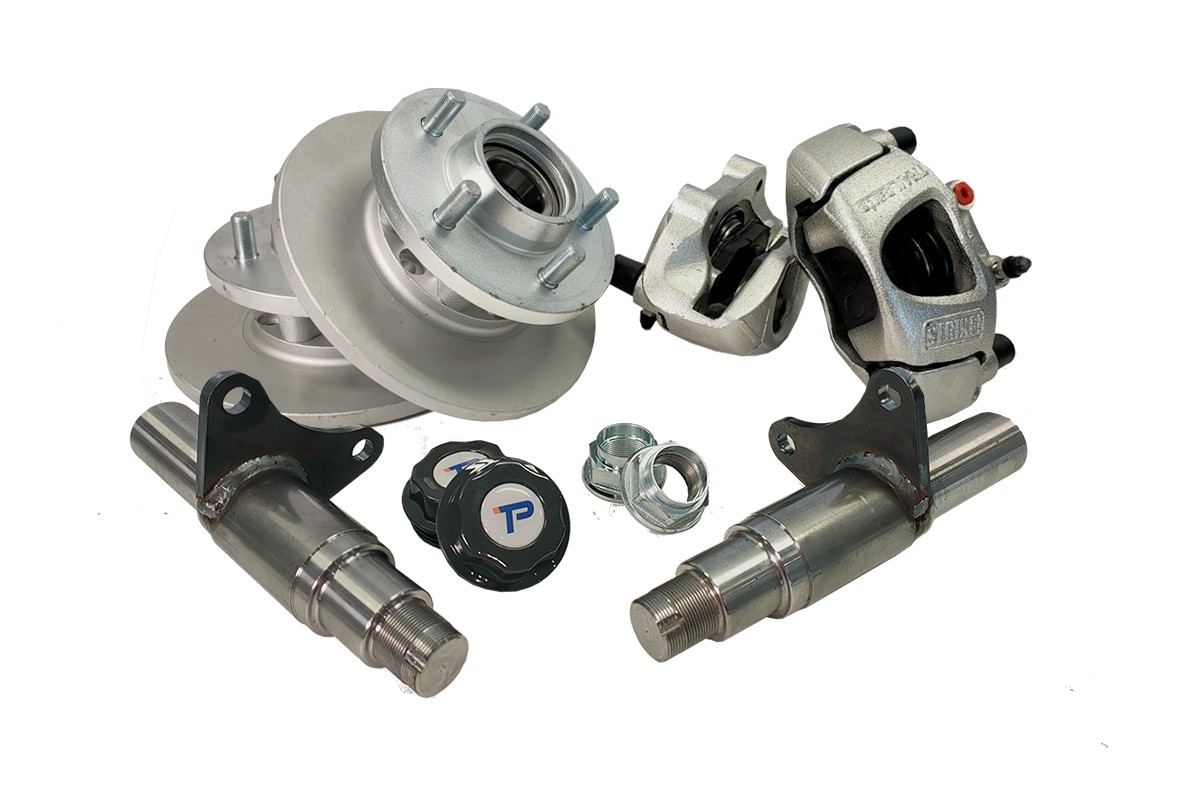

HU4402HUnihub - 225mm Disc 1800kg HSS Strike! Cast 5 x 4 1/2"1
HU5232HUnihub - 1500kg Hub stub set 5 x 4 1/2"
1
X3753Rim/tyre 185 R14C 5 x 4 1/2" galvanized4
L2000MKLED tail lamp kit, 120x125mm, 10-30v1
L4634ALED amber marker 2.5m lead 10-30v2
E5C0510LED tail lamp kit, 120x125mm, 10-30v1
Z6700TTailgate latch assembly - swing out1
