Autofit Hydraulic Over-ride - 3/4" M.Cyl, Autoback - Dampers

Item code: C16HFA-D

$678.76 ea excl. GST

STP File

Many trailers carry precious or fragile cargo; horse floats, livestock, caravans and boats. Trailparts have further developed the Autofit coupling with a new dual damper upgrade now available. The new 200mm dampers mounted each side of the Autofit coupling absorb vibration, stabilizing both the tow vehicle and trailer, eliminating the mechanical clunking prevalent in standard over-ride couplings, resulting in a smoother, safer ride.

Autofit® hydraulic braked couplings continue the benefits associated with this range. When fitted with the Trailparts Premium Back-frame option, overall height is lowered significantly, a horizontal lift handle reducing the possibility of expensive tailgate repairs and trailer damage. 2500kg rated.

See Trailparts Coupling Installation Guide for details regarding installation specs etc.

Autofit TM coupling by Trailparts™ also boast a number of entirely unique features, including:

  • The lowest profile cast coupling available in NZ both when in use and when released.
  • The ability to adjust to fit both towball sizes available in NZ when sat on towball.
  • An automatic locking function to secure the coupling into the correct towball setting required.
  • "Autoback" Included

Master Cylinder Troubleshooting

Features

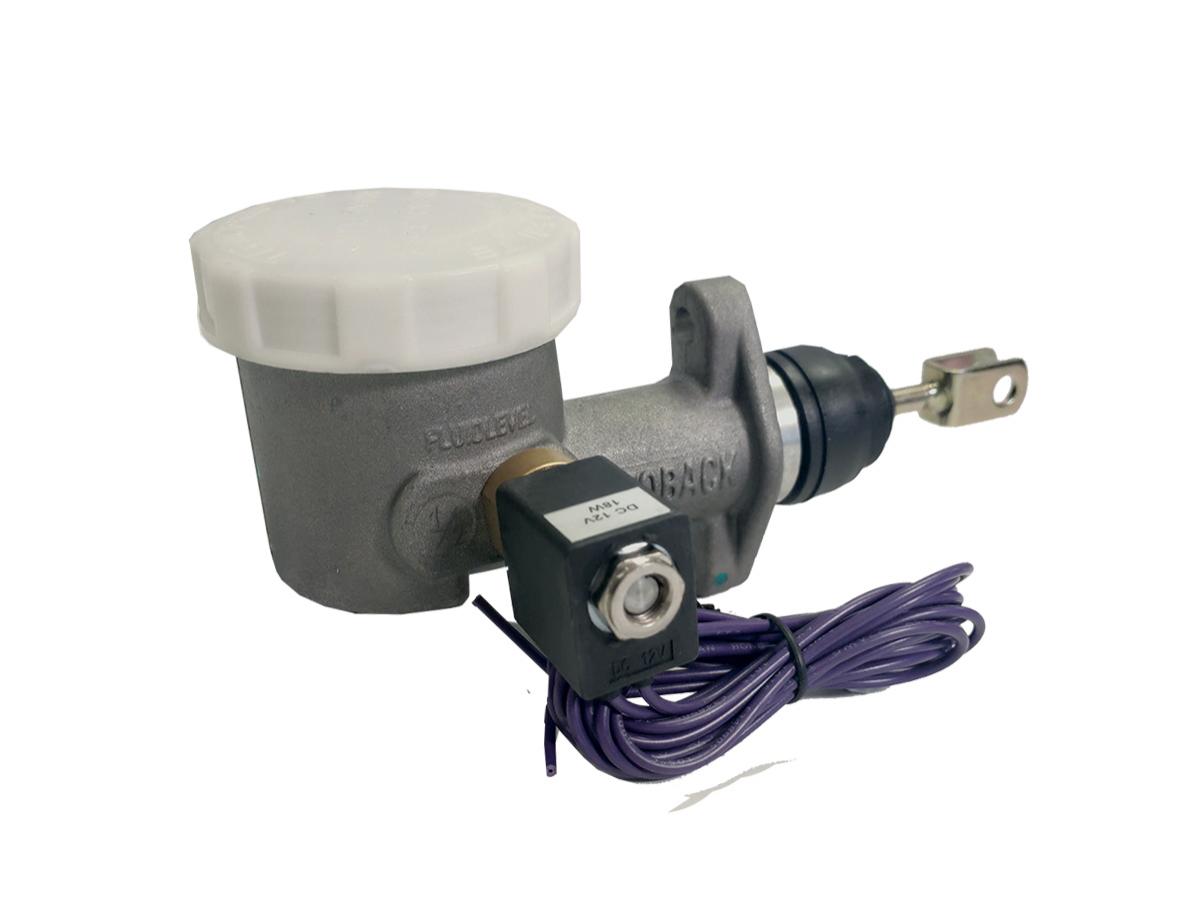

Autoback Valve image

Autoback Valve

The Autoback reversing system makes it easy, quick, and safe when reversing loaded trailers that are fitted with hydraulic over ride brakes. This latest development makes Autoback an affordable option on all trailers, and also easily retrofittable to existing braked trailers. Trailparts™ were the first to offer a reversing lock out brake system in New Zealand. Now compact and inexpensive, Autoback should be on the spec sheet of every new braked trailer!

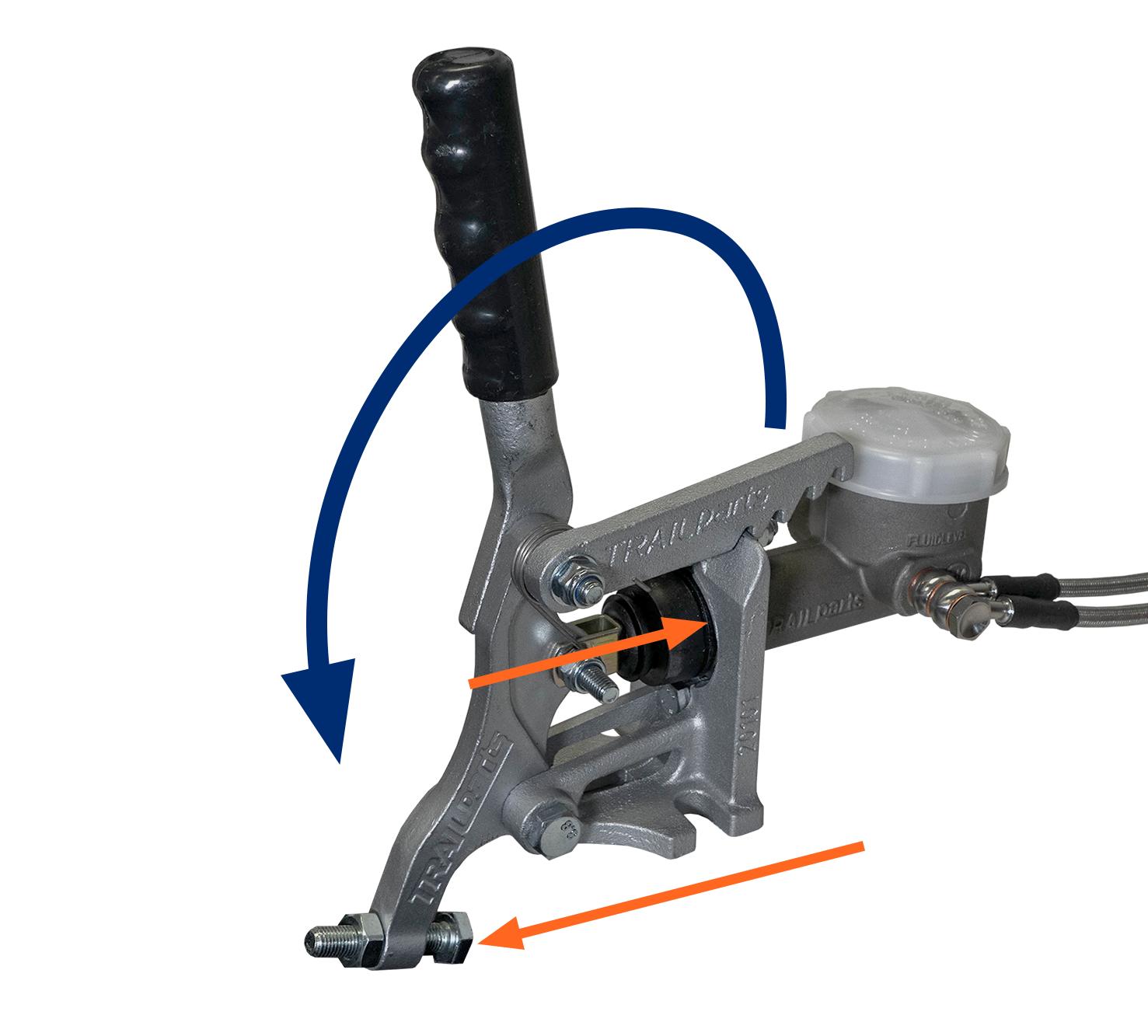

Quick Release Flipper Spring image

Quick Release Flipper Spring

We’ve come up with this ingenious hack to ensure you never get burnt out brakes again. If the park brake is left engaged, the flipper spring will ensure it is released at the first brake actuation – usually as the trailer leaves the yard just a few metres away. Suits Trailparts Backframes with folding handles.

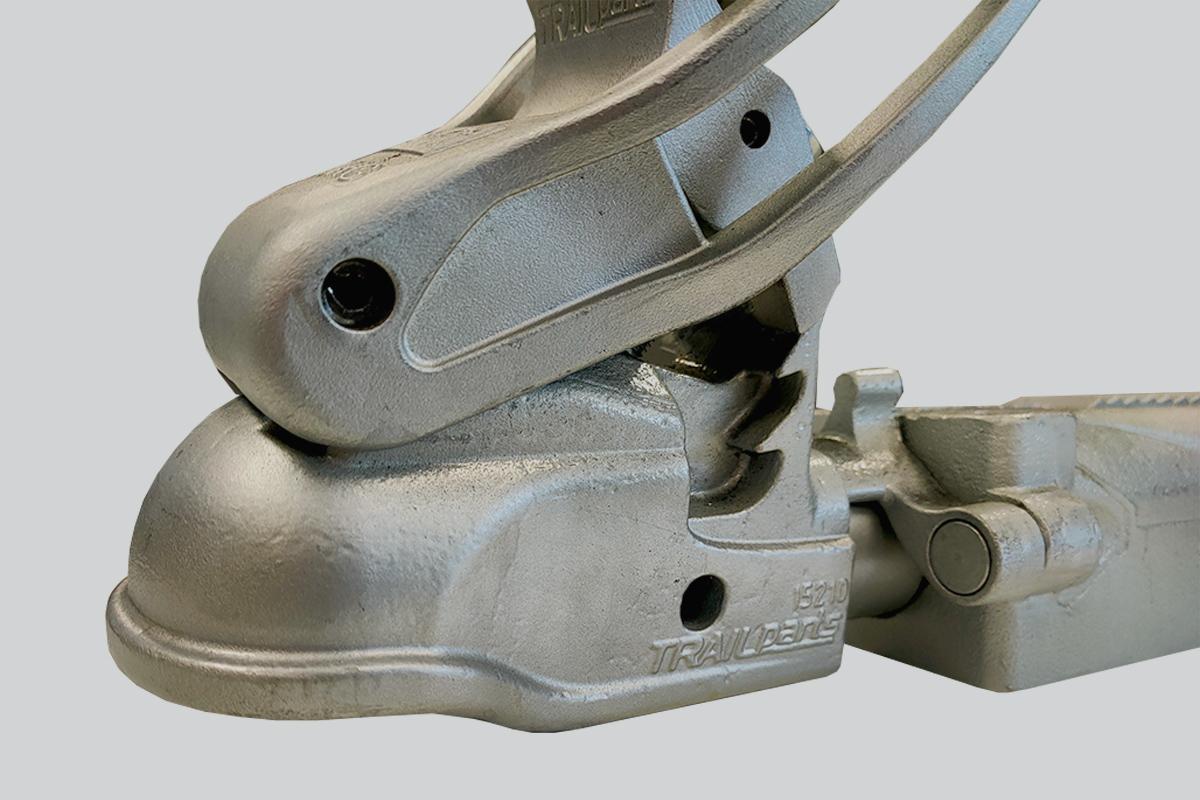

Self adjusting – Convenient image

Self adjusting – Convenient

Self adjusts to fit both 50mm & 1 7/8” towball sizes available in NZ - no operator input required.

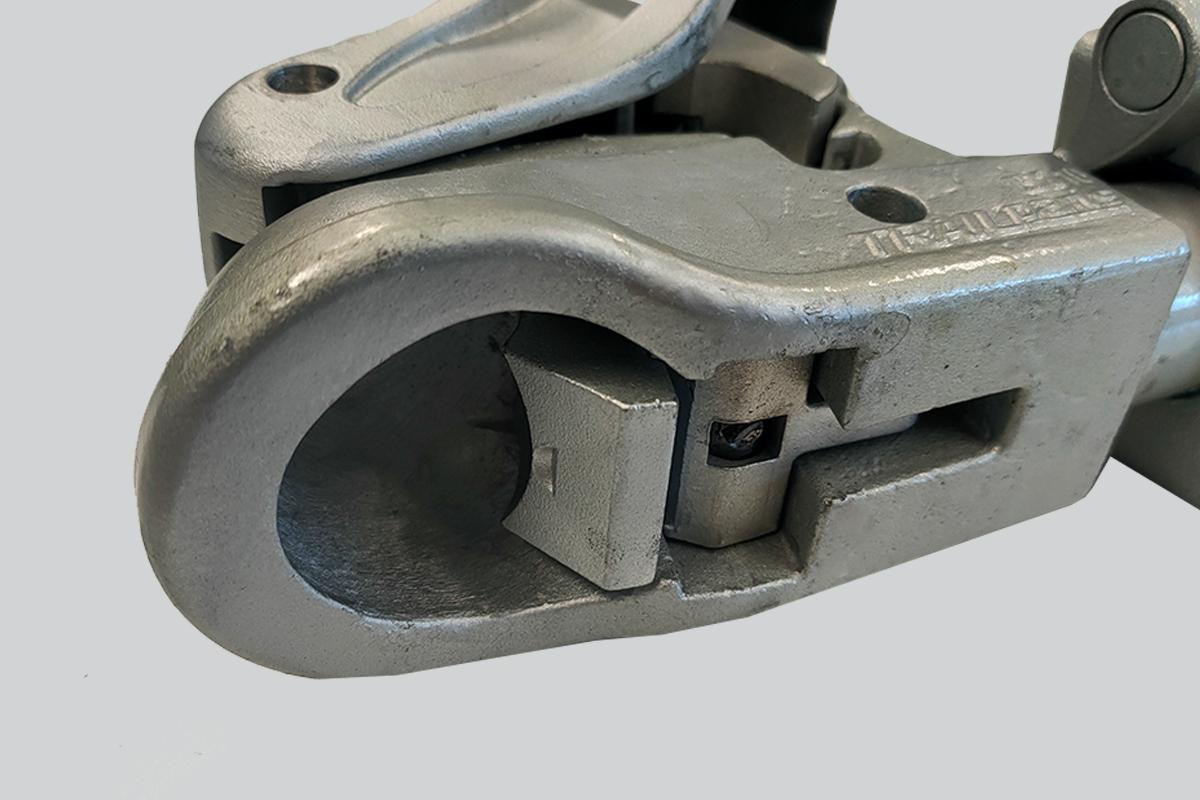

Self locking – Safe image

Self locking – Safe

Will always positively lock into the correct towball setting required - automatically.
