225mm Disc 1500kg HSS Strike! Stainless 5x4 1/2" Eco

Item code: H4412E

$1,991.79 ea excl. GST

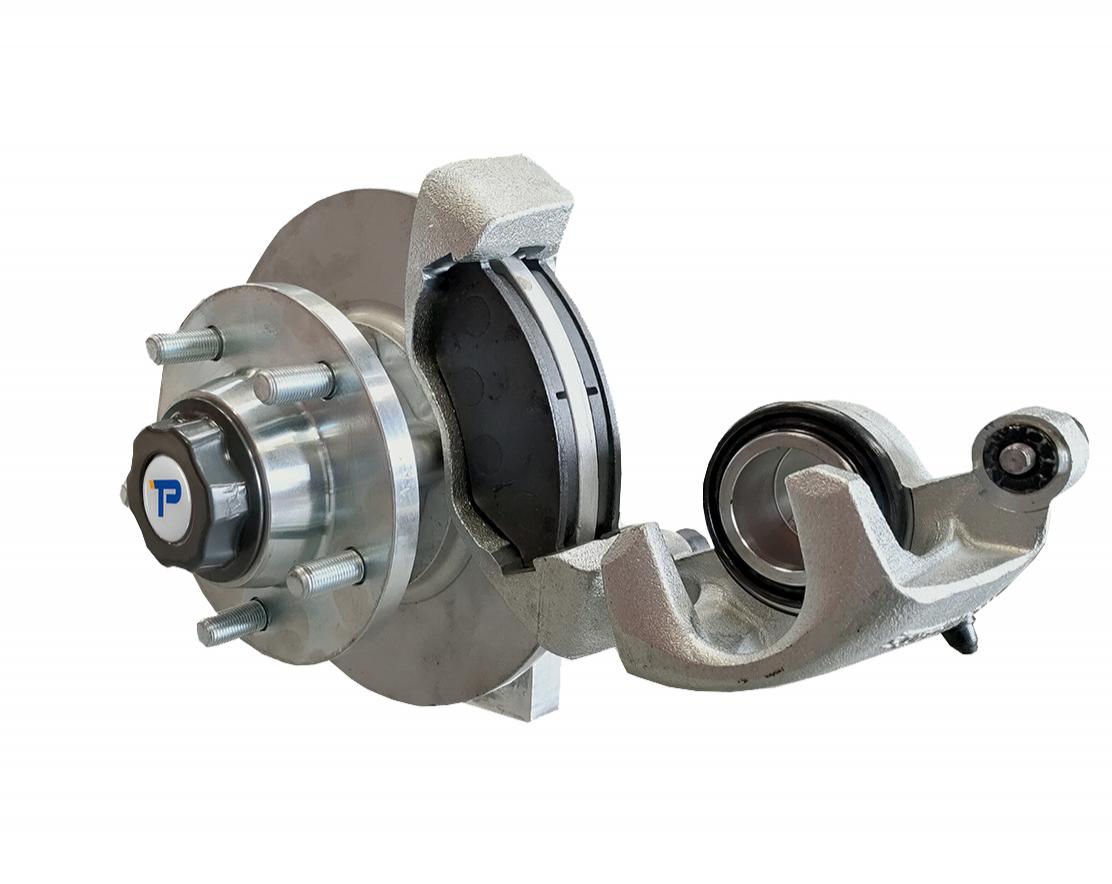

Trailparts™ 225mm stainless steel hydraulic brake sets are designed as a cost effective braking solution, and are suited for use on trailers that are typically run with lighter loads up to 2500kg. For Heavier marine trailers it is recommended to have two axles braked. They use Trailparts™ 1500kg and 1750kg stub axles and bearings, which are compatible with Trojan™ 225mm brake sets, meaning using these as direct replacements is easy.

Other features of these brakes are;

  • Stainless rotors with dacromet coating on hubs for corrosion resistance
  • Stainless calipers, with stainless 54mm (38mm deep) piston and guide pins
  • 225mm diameter 11mm thick rotors
  • Marine grade dual lip waterproof seals
  • Quality taper roller bearings
  • 45mm standard Trailparts™ grease cap

Stud Pattern 5 ;x 4½"
Stud Size ½"
Nut Size ½" (5 supplied in kit)
Rating 1500kg
Caliper (pr) B3700SS
Hub kit only (pr) H4312E
Rotor only (ea) H4211
Stud Part number H4982
Nut Part number H4996 (5 supplied in kit)
Stub Part number A5948
Bearing Kit only H4885E

Features

Strike! Stainless Calipers image

Strike! Stainless Calipers

New STRIKE! Stainless calipers offer a low profile fit compared to other alternatives on the market. They fit deeper inside the wheel, protrude less, and increase usable space on the inside deck area of trailers. With full stainless components and body these calipers is perfect for marine trailers. SKU: B3700SS
