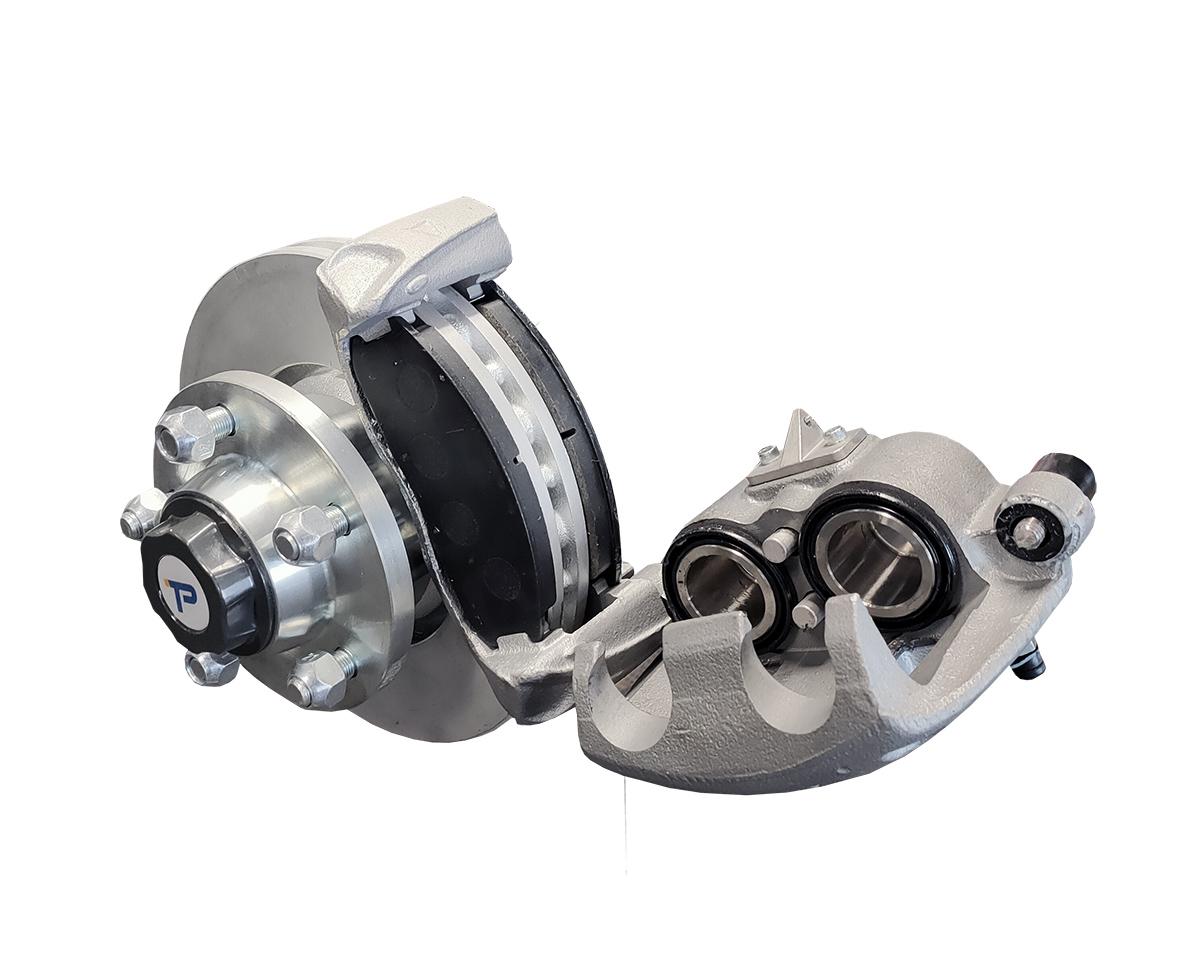

235mm Vented Disc 1750kg HSS Patriot 5x4 1/2" 45mm stub end

Item code: H4422HE

$1,390.72 ea excl. GST

235mm Rotor versions of the Trailparts™ Patriot trailer brakes are designed to be used with current model 1500kg and 1750kg stub axles and bearings. Caliper mount yokes used are compatible with commonly used Trojan™ 225mm brake sets, meaming retro-fitting performance brakes to existing trailers is easy.

Other features of these brakes are:

  • Dacromet coating on hubs, rotors and calipers for corrosion resistance
  • Dual Stainless Piston Performance calipers
  • 26mm vented 230mm rotors
  • Marine grade dual lip waterproof seals
  • Stub diameter 45mm
  • Quality taper roller bearings
  • 45mm standard Trailparts™ grease cap
  • Is easily able to be upgraded to have a park brake fitted

Stud Pattern 5 x 4½"
Stud Size ½"
Nut Size ½" (5 supplied in kit)
Rating 1750kg
Caliper (pr) B3600
Hub kit only (pr) H4322HE
Stud Part number H4982
Nut Part number H4996 (5 supplied in kit)
Stub Part number A5949
Bearing Kit only H4886E


Patriot - High Performance Calipers image

Patriot - High Performance Calipers

The Trailparts Patriot series define what a trailer disc brake should be. They give significant specification increases in every desirable area - brake pad size; twin pot piston; caliper frame rigidity; ventilated rotors and easy servicing features. SKU: B3600
Handbrake kit available.
