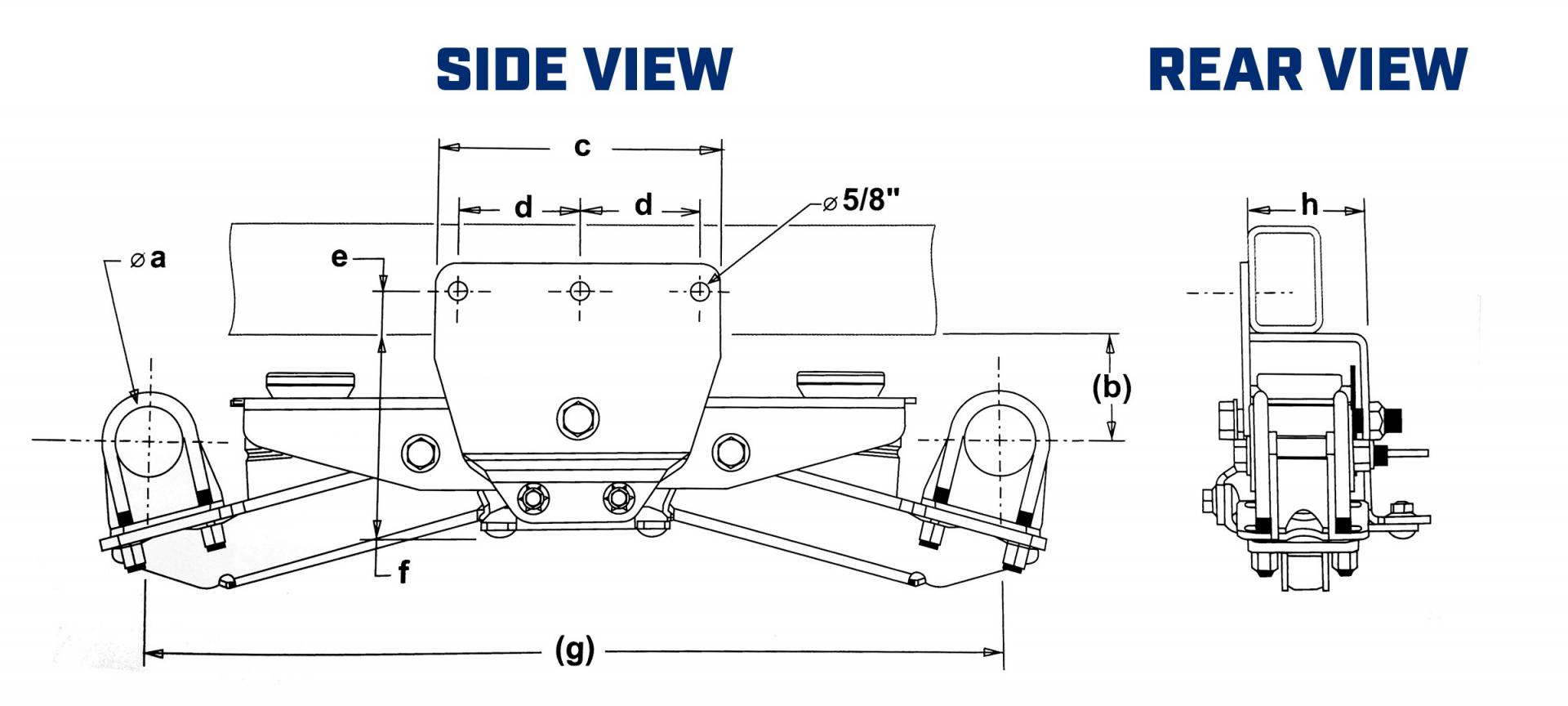

Timbren™ Silent Ride Equalizing
Tandem Axle Trailer
| Type | Max. Capacity | Dimensions mm) | Weight |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |||
| Tandem | 1,800kg | -** | 103* | 254 | 108 (x2) |
38 | 179 | 730 | 106 | 57kg |
| Tandem | 2,000kg | -** | 147* | 292 | 108 (x2) |
38 | 179 | 838 | 114 | 69kg |
| Tandem | 3,180kg | -** | 173* | 292 | 108 (x2) |
38 | 179 | 838 or 914 | 114 | 69kg |
| Tandem | 4,490kg | -** | 165* | 352 | 108 (x2) |
38 | 211 | 838 | 114 | 94kg |
| Tandem | 6,350kg | -** | 155* | 352 | 108 (x2) |
38 | 211 | 383 | 114 | 94kg |
* Axle choice will alter this dimension, this measurement was calculated using 50mm square axles & low profile axle seats. The measurement shown is with zero load.
** The Tandem axle Silent Ride Suspension system has drop in axle seats meaning both square and round axles of all dimensions are compatible.

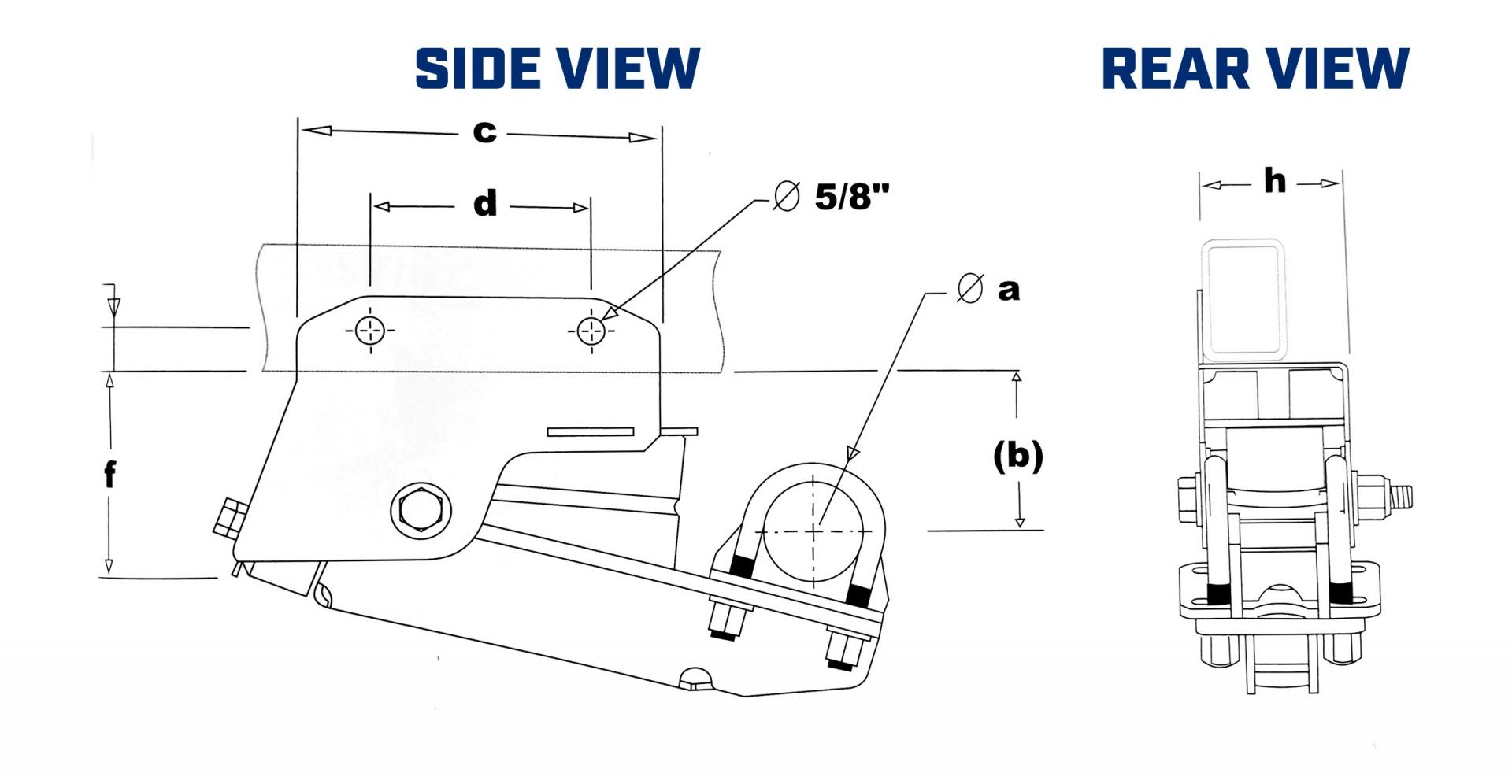

Timbren™ Silent Ride
Single Axle Trailer
| Type | Max. Capacity | Dimensions mm) | Weight |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |||
| Single | 900kg | -** | 95* | 209 | 127 | 25 | 122 | - | 86 | 19kg |
| Single | 1,590kg | -** | 138* | 241 | 152 | 25 | 125 | - | 95 | 25kg |
| Single | 2,270kg | -** | 144* | 291 | 108 (x2) |
38 | 127 | - | 114 | 45kg |
| Single | 3,180kg | -** | 144* | 291 | 108 (x2) |
38 | 127 | - | 114 | 45kg |
* Axle choice will alter this dimension, this measurement was calculated using 50mm square axles & low profile axle seats. The measurement shown is with zero load.
** The Single axle Silent Ride Suspension system has drop in axle seats meaning both square and round axles of all dimensions are compatible.

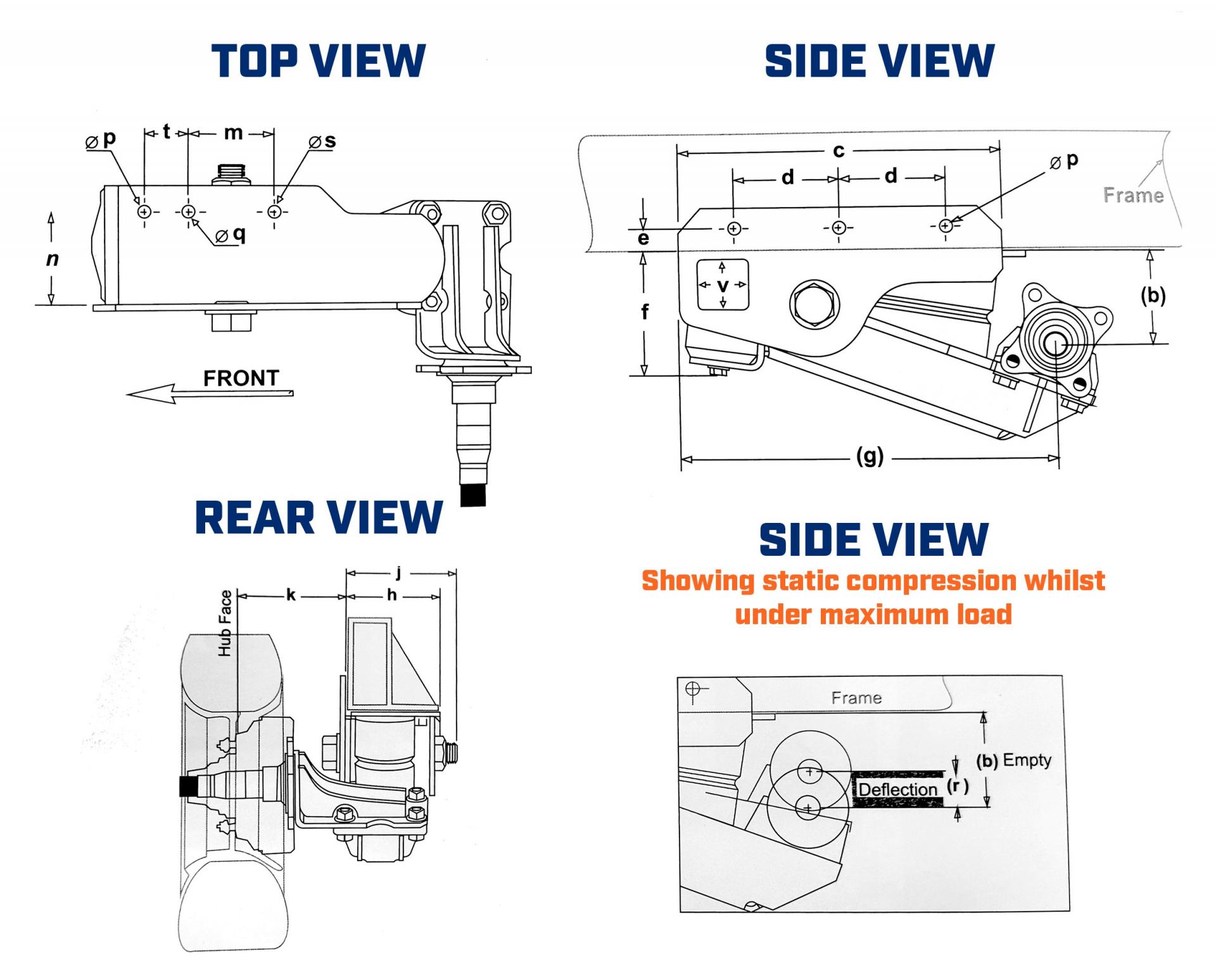

Timbren™ Axle-less
Single Axle Trailer
| Type | Max. Capacity | Dimensions mm) | Weight |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | R | C | D | E | F | G | H | J | M | N | P | Q | S | T | V | |||
| Axle-Less | 545kg | 67 | 54 | 283 | 95 (x2) |
25 | 127 | 346 | 98 | 118 | 95 | 79 | 13 | ½" UNC |
- | - | 51x51 | 26kg* |
| Axle-Less |
900kg | 67 | 67 |
283 | 95 (X2) |
25 | 127 | 346 | 98 | 118 | 95 | 79 | 13 | ½" UNC |
- | - | 51x51 | 26kg* |
| Axle-Less | 900kg Heavy Duty |
97** | 41 |
330 | 108 (x2) |
25 | 127 | 381** |
121 | 143 | 86 | 94 | 13 | ½" UNC |
½" UNC |
45 | 51x51 | 43kg* |
| Axle-Less | 1000kg Heavy Duty | 151** | 86 | 330 | 108 (x2) |
25 | 127 | 483** |
121 | 143 | 86 | 94 | 13 | ½" UNC |
½" UNC |
45 | 51x51 | 43kg* |
| Axle-Less | 1,590kg | 97** | 45 | 330 | 108 (x2) |
25 | 127 | 381** |
121 | 143 | 86 | 94 | 13 | ½" UNC |
½" UNC |
45 | 51x51 | 43kg* |
| Axle-Less | 1,590kg Heavy Duty | 89** | 67 | 364 | 127 (x2) |
38 | 159 | 438** |
146 | 143 | 83 | 133 | 16 | 16 |
16 |
57 | 51x76 | 68kg* |
| Axle-Less | 2,364kg |
89** | 70 | 364 | 127 (x2) |
38 | 159 | 438** |
146 | 143 | 83 | 133 | 16 | 16 |
16 |
57 | 51x76 | 69kg* |
| Axle-Less | 3,180kg |
89** | 48** |
364 | 127 (x2) |
38 | 159 | 438** |
146 | 143 | 83 | 133 | 16 | 16 |
16 |
57 | 51x76 | 72kg* |
* Weight may vary depending on stub choice.
** This dimension is size on a standard stub. Measure varies depending on Stub axle choice.
