Tandem Trailer Kit 2500kg Vented Disc Braked - Unihub

Item code: TK2500TBVU

$3,942.00 set excl. GST

When planning a trailer build it is important to have reliable trailer components you can trust. This Kit has all you need to fit out a top class 2500kg Tandem Trailer with front and rear tailgate and single Braked Axle. "We do the business" so you can get on with building your dream trailer.

From the zinc plated over-ride coupling with super low profile Master Cylinder, Folding Back Frame Handle and unique quick release Flipper Spring, which will ensure you never have burnt out brakes again.

NZ Trailer Brake Regulations requires trailers up to 2500kg to be fitted with service brakes on at least 1 axle, twin crossed safety chains, or an electric Breakaway System. This kit includes one 235mm Vented Rotor Cast  Patriot Disc braked axle and twin rated safety chains.

This trailer kit is set up with Trailparts™ latest hub innovation, Unihub. The Unhub's feature unitised bearings with a sealed for life design that doesn't require any maintenance. These bearings bear radial/axial loads from all directions reducing twisting. Tow in confidence with an improved, shorter, thicker stub design and increase peak load safety margins.

This kit is best suited for general purpose 2500kg trailers with high performance braking.

Pre-Assembled Axles Upgrade

Take advantage of Trailparts™ 36 month warranty, saving your time and the complications that can be involved aligning and welding your stubs to the axle. Have your Custom Axles delivered straight to you, ready to be bolt to your trailer. Simply add a note to your order and one of the Trailparts™ service team will get in touch about your axle upgrade.



Part Code Description Quantity
C2750F Hydraulic over-ride 2500kg, 3/4", folding handle 1
E43007 pin flat PLUG, Quickfit, B41
E43307 pin flat plug HOLDER, plastic1

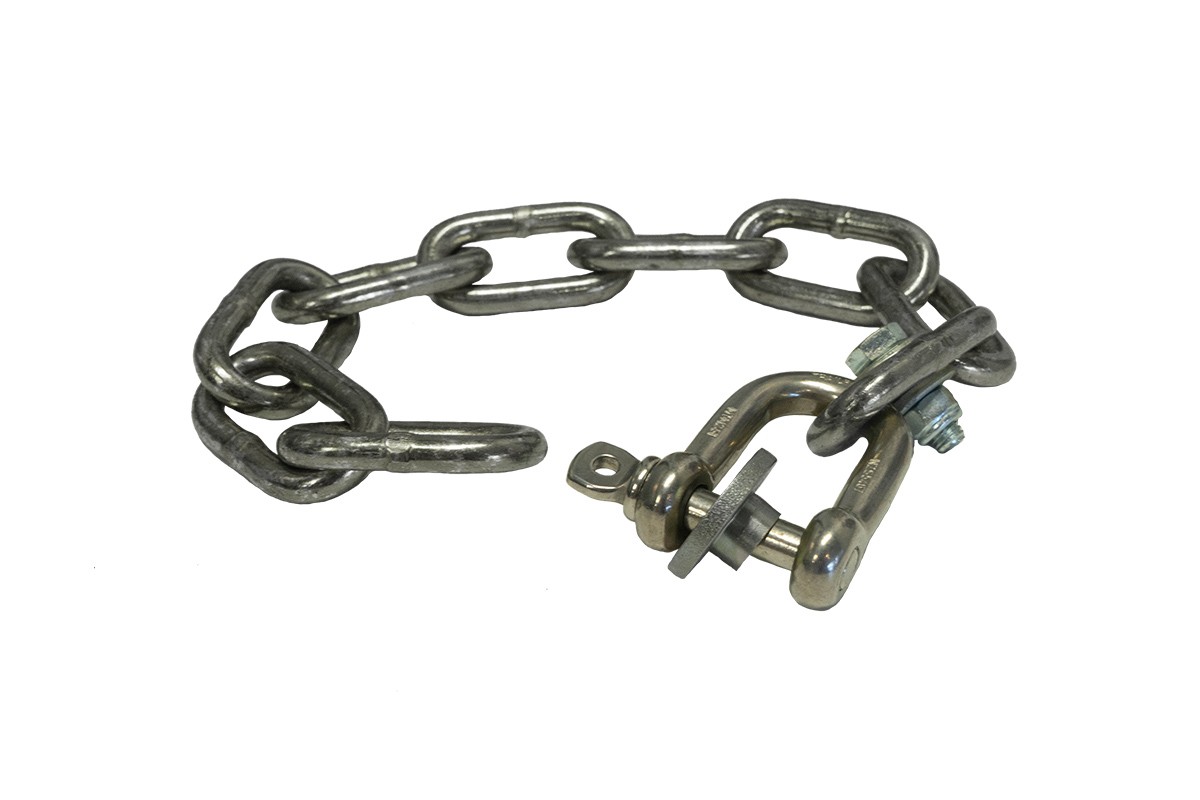

Z6771SSSafety Chain Kit - 9 link chain2
JT8BGSolid Galv Jockey Wheel, 250x4 rim/tyre, 220kg bolt on
1
BBK4025Hydraulic Brake Hose 4000/2500mm including fittings
1/kit
G2158Mudguards - 235 x 1500 mm, folded bare, economy
1/pr
S3345Spring set complete - eye/slipper rocker, 5 Leaf, 2500kg1
HU4422H235mm Vented Disc Unihub 1800kg HSS Patriot Cast 5 x 4 1/2"1

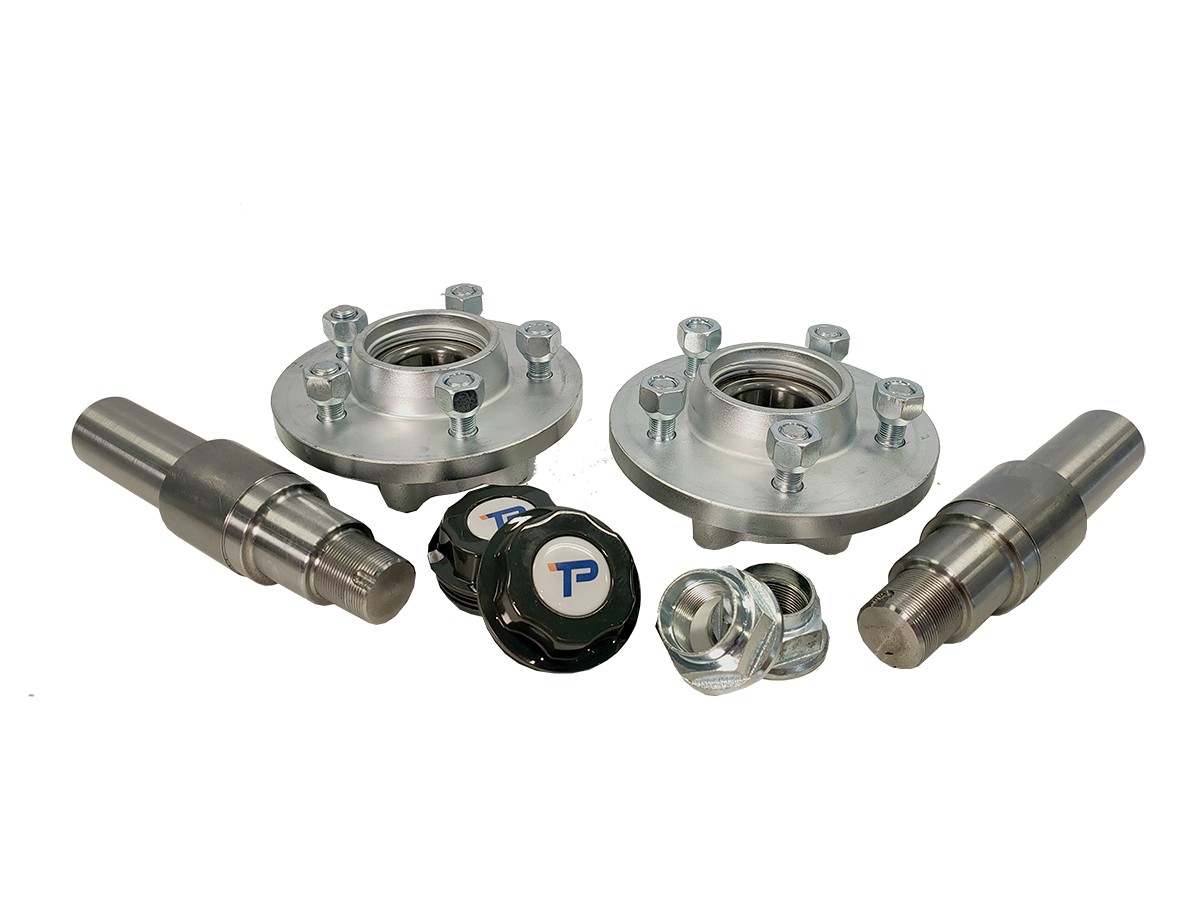

HU5232HUnihub 1800kg Hub stub set 5 x 4 1/2"
1
X3753Rim/tyre 185 R14C 5 x 4 1/2" galvanized4

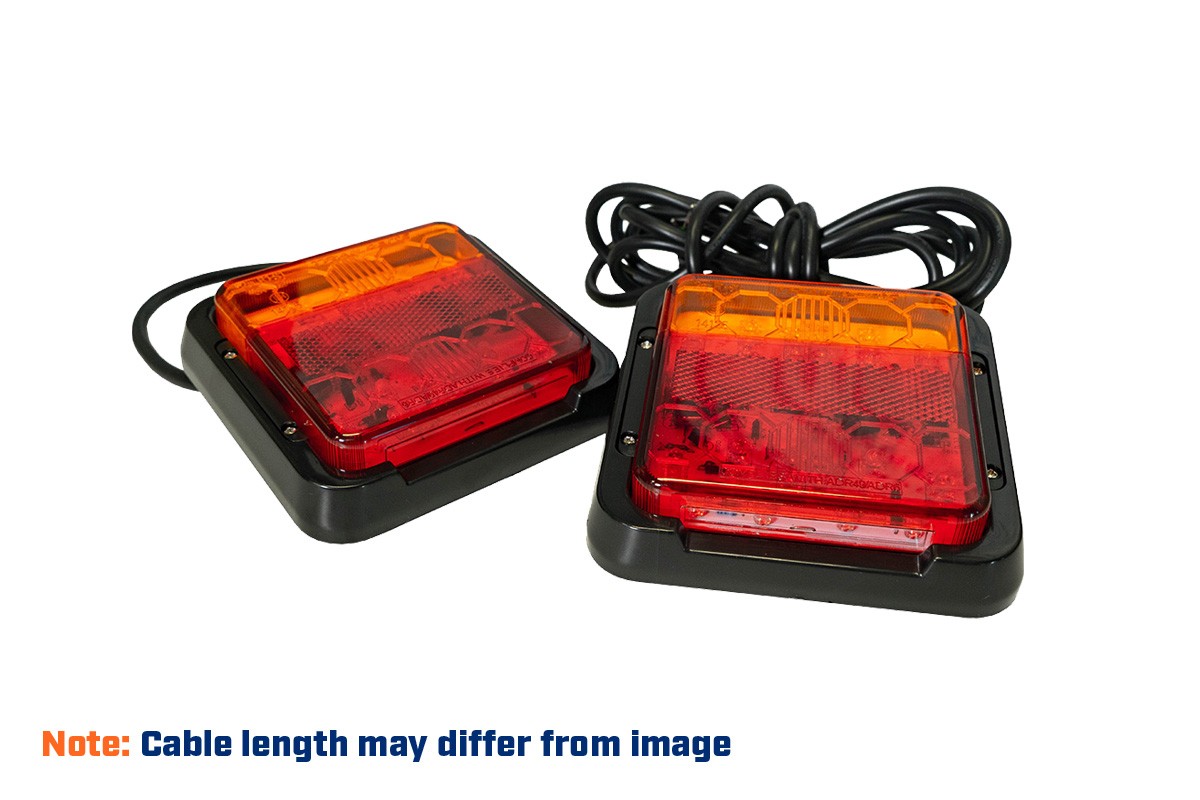

L2000MKLED tail lamp kit, 120x125mm, 10-30v1
L4634ALED amber marker 2.5m lead 10-30v1
E5C0510LED tail lamp kit, 120x125mm, 10-30v1
Z6700Tailgate latch assembly - swing out1
