When planning a trailer build it is important to have reliable trailer components you can trust. This Kit has all you need to fit out a 1800kg Single Axle Trailer with front and rear tailgate and single disc Braked Axle. "We do the business" so you can get on with building your dream trailer.
From the zinc plated over-ride coupling with super low profile Master Cylinder, Folding Back Frame Handle and unique quick release Flipper Spring, which will ensure you never have burnt out brakes again.
NZ Trailer Brake Regulations for trailers up to 2000kg do not legally require brakes. The vehicle/trailer combination must be capable of stopping within 7 m from 30 km/h without damage to the structure of the tow vehicle or the trailer. This kit includes one 225mm Rotor Cast Iron Strike! Disc braked axle and a rated safety chain.
This kit is best suited for general purpose 1800kg garden trailers.
Pre-Assembled Axles Included - 36 month warranty
To guarantee the quality of your Unihubs, your axles will be professionally assembled to your custom length requirements and delivered with your complete trailer kit. Not only will this save time, custom axles with Unihub's come with a HUGE 36 month warranty!
One of our service team members will get in touch regarding your axle specifications.
| Part Code | Description | Quantity |
| C2750F | Hydraulic over-ride 2500kg, 3/4", folding handle | 1 |
| E4300 | 7 pin flat PLUG, Quickfit, B4 | 1 |
| E4330 | 7 pin flat plug HOLDER, plastic | 1 |

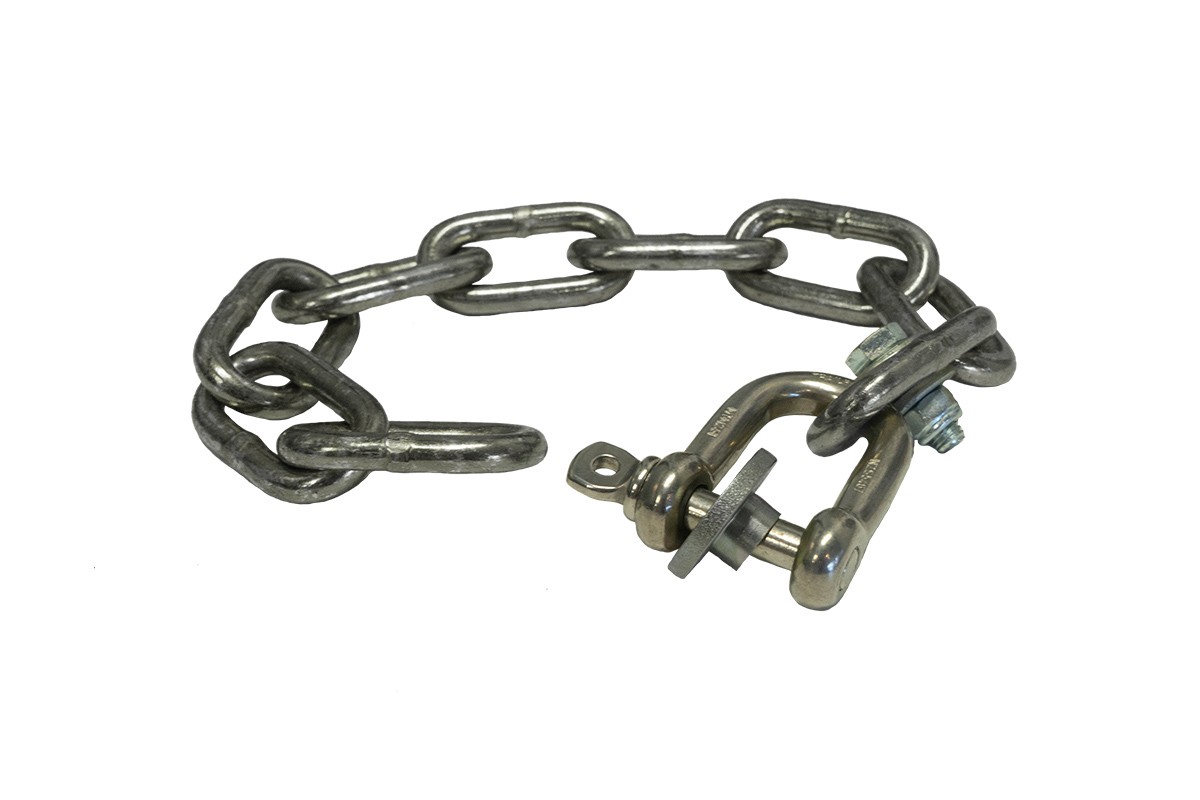

| Z6771SS | Safety Chain Kit - 9 link chain | 1
|
| JZ6B | Jockey wheel 6" plastic wheel, 150 kg, Bolt on | 1 |
| BBK4025 | Hydraulic Brake Hose 4000/2500mm including fittings
| 1/kit |
| G2058 | Mudguards - 235 x 740 mm, folded bare, economy
| 1/pr |
| S3238 | Spring set - eye/slipper, 8 Leaf, 1750kg | 1 |
| HU4402E | Unihub 1800kg 225mm Disc HSS Strike! Cast 5 x 4 1/2" | 1 |
| X3753 | Rim/tyre 185 R14C 5 x 4 1/2" galvanized | 2
|
| L2000MK | LED tail lamp kit, 120x125mm, 10-30v | 1 |
| E5C0510 | LED tail lamp kit, 120x125mm, 10-30v | 1 |
| Z6700T | Tailgate latch assembly - swing out | 2 |
