225mm Disc 1750kg HSS Strike! Cast 6x5 1/2" 38mm stub

Item code: H4407HTE

$1,198.38 ea excl. GST

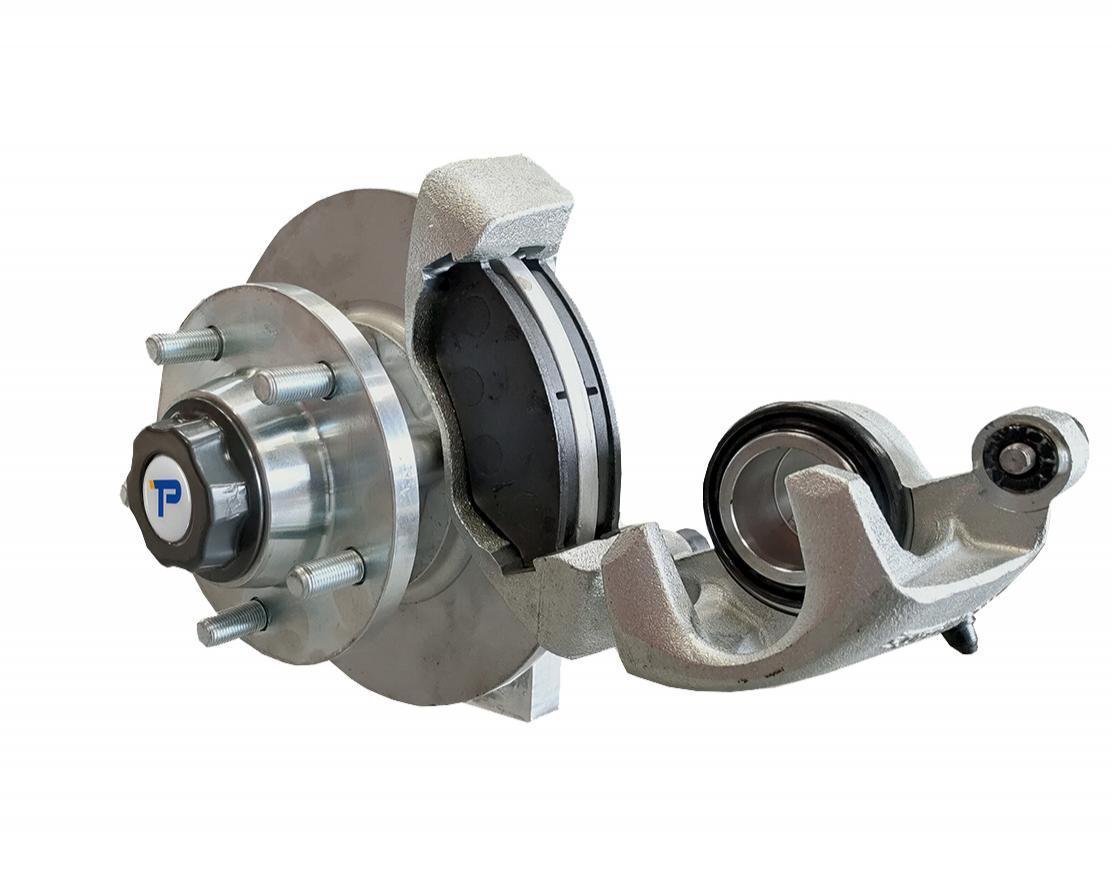

Trailparts™ 225mm Strike! cast hydraulic brake sets are designed as a cost effective braking solution, and are suited for use on trailers that are typically run with lighter loads up to 2500kg. Heavier trailers we recommend the use of Patriot high performance vented brakes. They use Trailparts™ 1500kg and 1750kg stub axles and bearings, which are compatible with Trojan™ 225mm brake sets, meaning using these as direct replacements is easy.

Other features of these brakes are;

  • Dacromet coating on hubs, rotors and calipers for corrosion resistance
  • Strike! Cast calipers with stainless steel 54mm piston and guide pins
  • 225mm diameter 11mm thick rotors
  • Marine grade triple lip waterproof seals
  • Economy taper roller bearings
  • 45mm standard Trailparts™ grease cap

Stud Pattern 6 x 5½"
Stud/Nut Size ½"
Rating 1750kg
Calipers (pr) B3700 (Strike!)
Hub kit only (pr) H4307HE
Stud Part number H4982
Nut Part number H4996 (12 supplied in kit)
Stub Part number A5948T
Bearing Kit only H4886E


Strike! Cast Calipers image

Strike! Cast Calipers

New STRIKE! calipers offer a low profile fit compared to other alternatives on the market. They fit deeper inside the wheel, protrude less, and increase usable space on the inside deck area of trailers. SKU: B3700
