225mm Disc 1750kg HSS Strike! Stainless 6x5 1/2" 38mm Stub

Item code: H4417HTE

$1,821.66 pr excl. GST

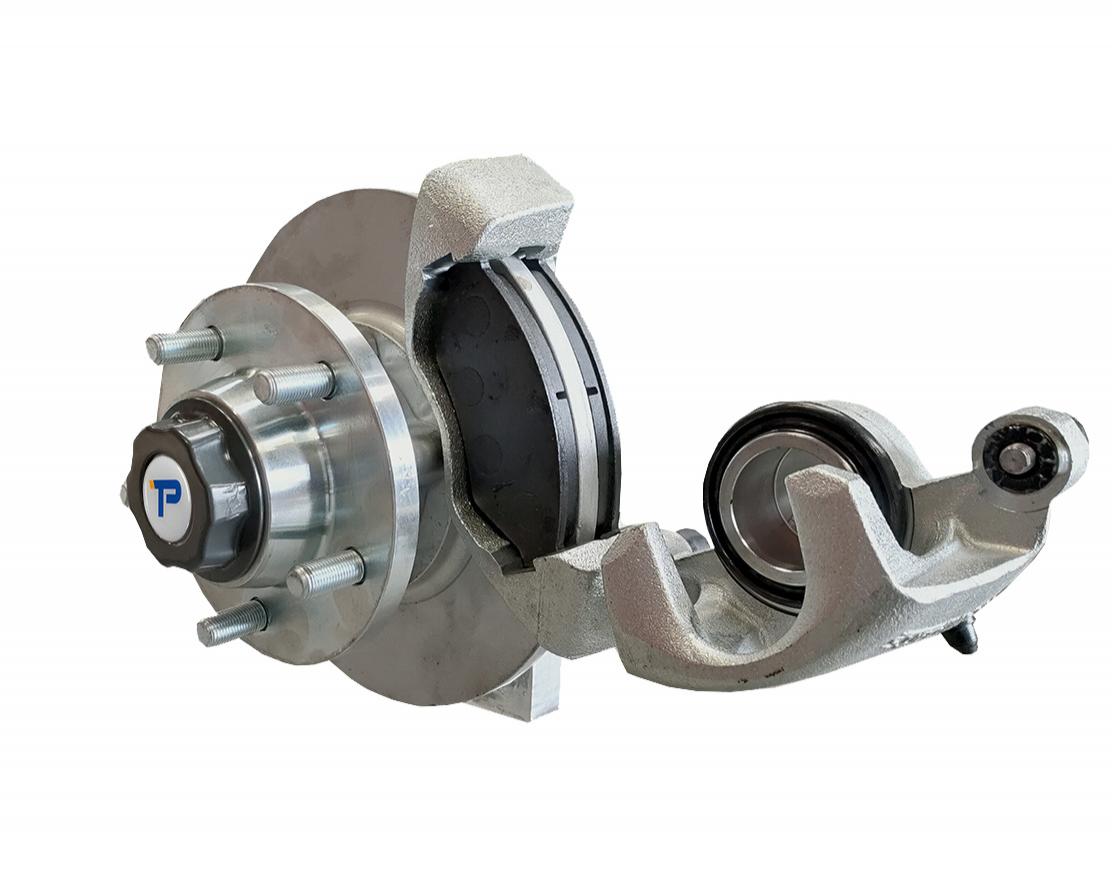

Trailparts™ 225mm stainless steel hydraulic brake sets are designed as a cost effective braking solution, and are suited for use on marine trailers that are typically run with lighter loads up to 2500kg. For Heavier marine trailers it is recommended to have two axles braked. They use Trailparts™ 1500kg and 1750kg stub axles and bearings, which are compatible with Trojan™ 225mm brake sets, meaning using these as direct replacements is easy.

Other features of these brakes are;

  • Stainless rotors with dacromet coating on hubs for corrosion resistance
  • Strike! Stainless calipers, with stainless 54mm (38mm deep) piston and guide pins
  • 225mm diameter 11mm thick rotors
  • Stub axle turned down to 38mm
  • Marine grade triple lip waterproof seals
  • Quality taper roller bearings
  • 45mm standard Trailparts™ grease cap

Stud Pattern 6 x 5½"
Stud/Nut Size ½"
Rating 1750kg
Calipers (pr) B3700SS (Strike!)
Hub kit only (pr) H4317HE
Rotor only (ea) H4211
Stud Part number H4982
Nut Part number H4996 (12 supplied in kit)
Stub Part number A5949T
Bearing Kit only H4886E


Strike! Stainless Calipers image

Strike! Stainless Calipers

New STRIKE! Stainless calipers offer a low profile fit compared to other alternatives on the market. They fit deeper inside the wheel, protrude less, and increase usable space on the inside deck area of trailers. With full stainless components and body these calipers is perfect for marine trailers. SKU: B3700SS
